Repair Procedures: Replacement: Notes

Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
Turn the steering wheel so that the front wheels can face straight ahead.
Remove the airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Disconnect the connector & lock nut (A) and then remove the steering wheel (B) by using special service tools (09561-11001).
Tightening torque:

39.2 - 44.1 N.m (4.0 - 4.5 kgf.m, 28.9 - 32.5 lb.ft)

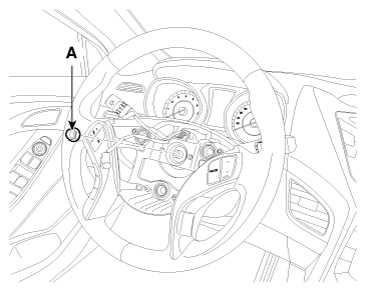

Fig 1: Locating Connector & Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Removing Steering Wheel Using Special Service Tools (09561-11001)
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Do not hammer on the steering wheel to remove it; it may damage the steering column.
Installation is the reverse of the removal.
