Description And Operation: Description: Operation

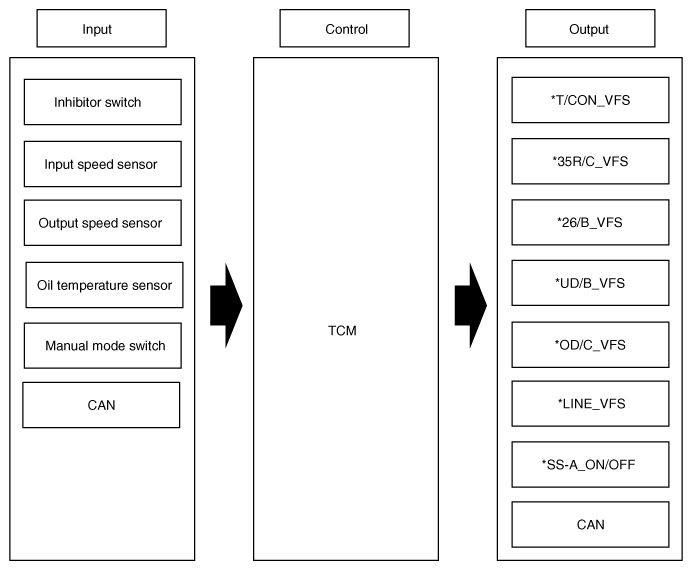

Fig 1: Automatic Transaxle Control System Input And Output Diagram

Courtesy of KIA MOTORS AMERICA, INC.

* T/CON_VFS: Torque converter control solenoid valve

* 35R/C_VFS: 35R clutch control solenoid valve

* 26/B_VFS: 26 Brake control solenoid valve

* UD/B_VFS: Underdrive brake control solenoid valve

* OD/C_VFS: Overdrive clutch control solenoid valve

* LINE_VFS: Line pressure control solenoid valve

* SS-A_ON/OFF: Shift control solenoid valve-A
