Repair Procedures: Installation

Check that the shift lever is placed in the "N" position.
Install the shift cable retainer (A).
Tightening torque:

11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

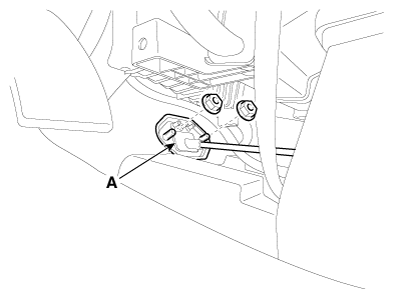

Fig 1: Installing Shift Cable Retainer
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift cable (A).

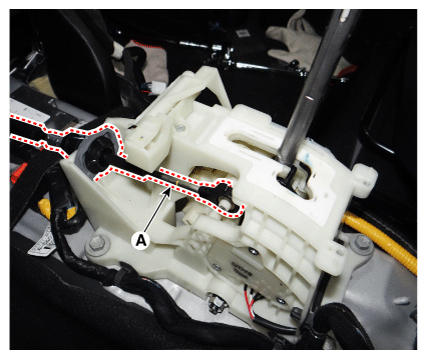

Fig 2: Installing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")
Install the knob & boots (A) by pressing the direction of arrow after installing the boots to the console upper cover.

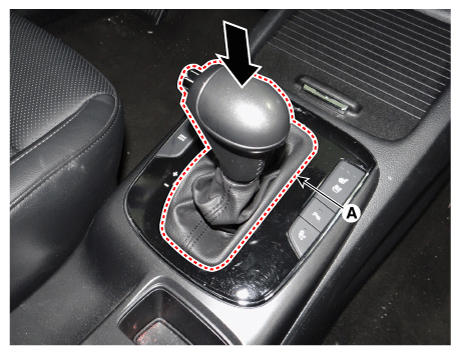

Fig 3: Installing Knob & Boots
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift cable (A) to bracket and then lightly tighten the nut (B).

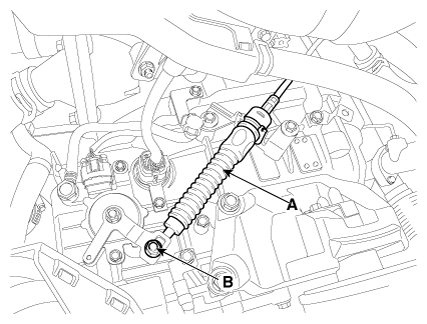

Fig 4: Installing Shift Cable To Bracket
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing shift cable clip (A) must be replaced with new one. (Do not reuse it.)

Fig 5: Removing Shift Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

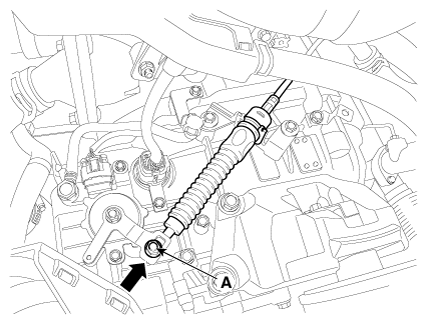

Fig 6: Pushing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
