Repair Procedures: Removal

Perform the oil pressure characteristics backup procedure using the KDS/GDS when replacing with a new TCM.

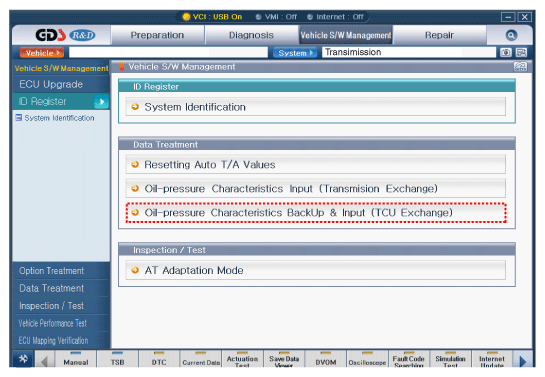

Fig 1: Screen Display - Oil Pressure Characteristics Backup
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
Disconnect the TCM connector (A).

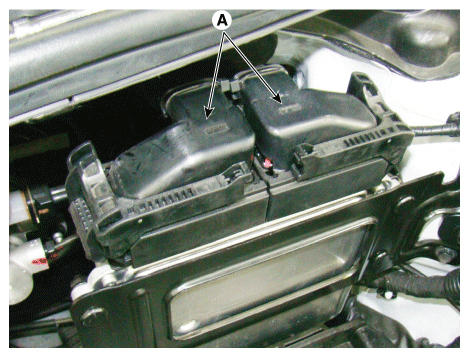

Fig 2: Disconnecting TCM Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the TCM (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

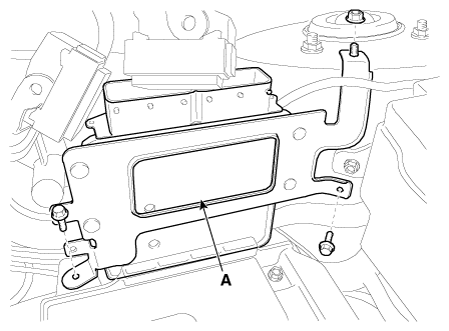

Fig 3: Removing TCM
Courtesy of KIA MOTORS AMERICA, INC.
