Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad side cover [RH] (A).

Fig 1: Locating Crash Pad Side Cover (RH)
Courtesy of KIA MOTORS AMERICA, INC.

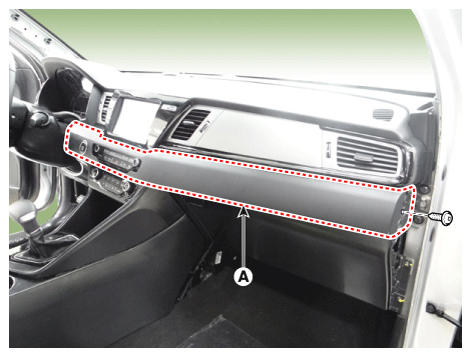

Remove the crash pad plate [RH] (A) after loosening the mounting screws.

Fig 2: Removing Crash Pad Plate Mounting Screws (RH)
Courtesy of KIA MOTORS AMERICA, INC.

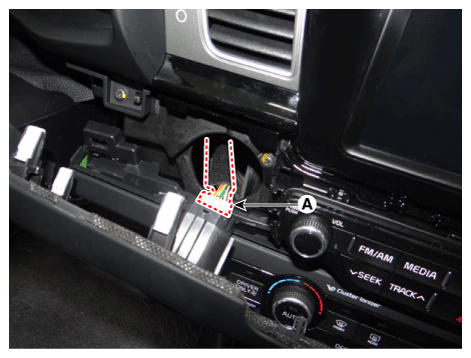

Disconnect the start/stop button connector (A).

Fig 3: Locating Start/Stop Button Connector
Courtesy of KIA MOTORS AMERICA, INC.

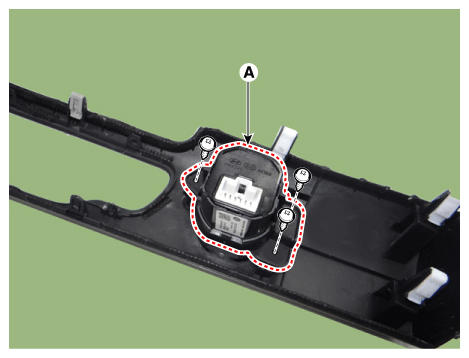

Remove the start/stop button (A) after loosening the mounting screws.

Fig 4: Removing Start/Stop Button Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
