Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B).
  5. Remove the fuel tank air filter after removing the mounting bolts (C).

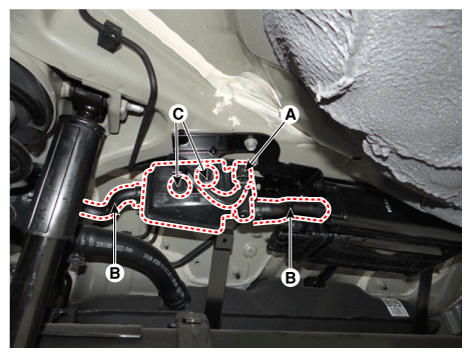

    Fig 1: Disconnecting Canister Close Valve Connector
    G12165665Courtesy of KIA MOTORS AMERICA, INC.
  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.

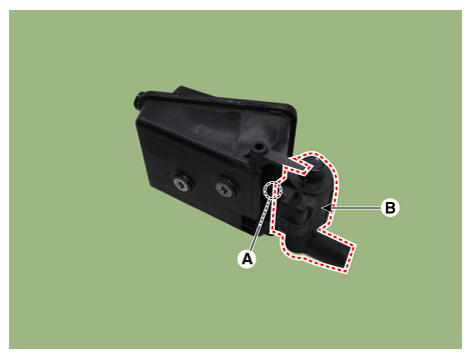

    Fig 2: Releasing Lever
    G12165666Courtesy of KIA MOTORS AMERICA, INC.

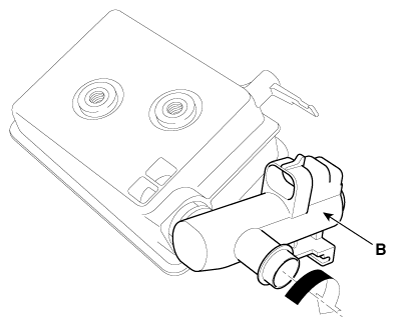

    Fig 3: Separating Canister Close Valve From Fuel Tank Air Filter
    G12165667Courtesy of KIA MOTORS AMERICA, INC.
