Repair Procedures: Installation

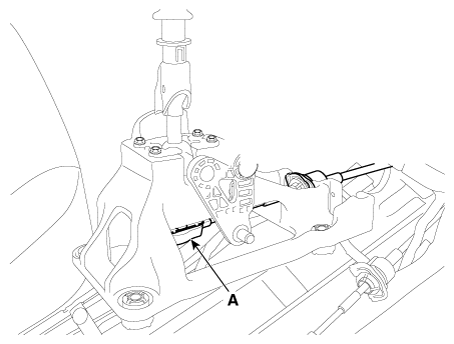

Install the control cable (A).

Fig 1: Locating Control Cable
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing control cable clip (A) must be replaced with new one. (Do not reuse it.)

Fig 2: Locating Existing Control Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.

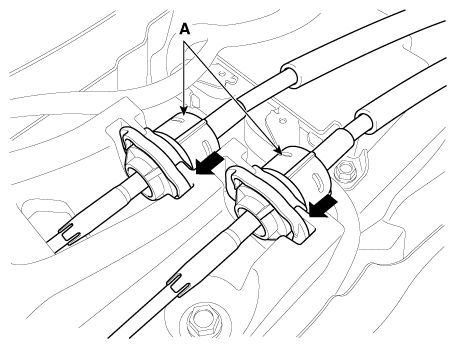

Install the control cable retainer (A).
Tightening torque:

11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

Fig 3: Locating Control Cable Retainer With Nut
Courtesy of KIA MOTORS AMERICA, INC.

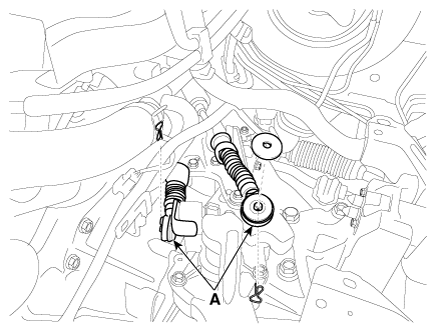

Install the control cable socket (A).

Fig 4: Installing Control Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift cable (A).

Fig 5: Locating Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Check that the shift lever and control shaft are placed in the "3rd" position.

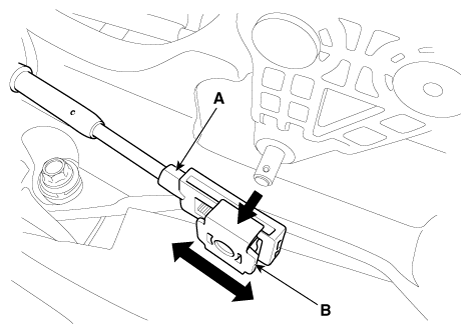

Install the select cable (A) to shift lever pin after pulling the adjuster (B) in the direction as arrow.

Fig 6: Pulling Adjuster
Courtesy of KIA MOTORS AMERICA, INC.

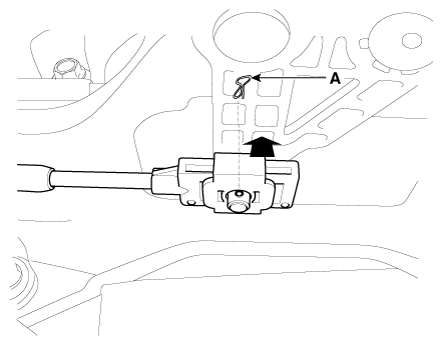

Insert the snap pin (A) after pushing the adjuster (B) in the direction as arrow.

Fig 7: Pushing Adjuster
Courtesy of KIA MOTORS AMERICA, INC.
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
