Repair Procedures: Removal

Shift the gear to "3rd".
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the shift & select cable.
1. Remove the pin (A) and washer (B).
2. Make unlock clip (C) and then remove the shift & select cable and the clip (C) from the bracket.

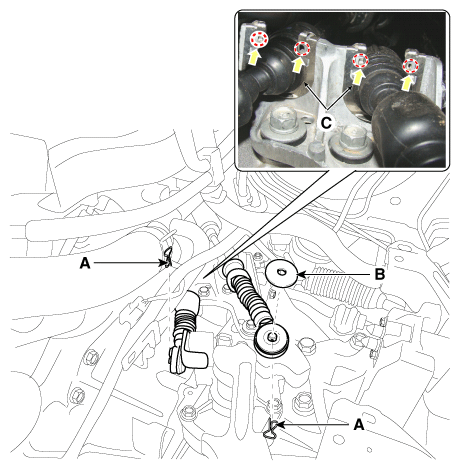

Fig 1: Locating Pin, Washer And Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")
Remove the select cable (B) by removing the snap pin (A).

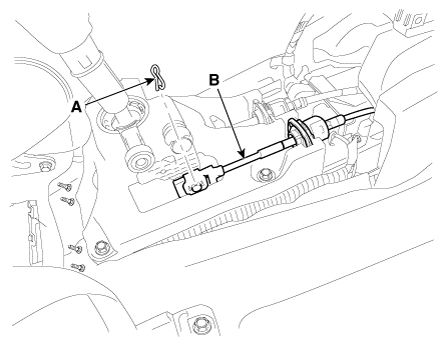

Fig 2: Locating Select Cable And Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable (A).

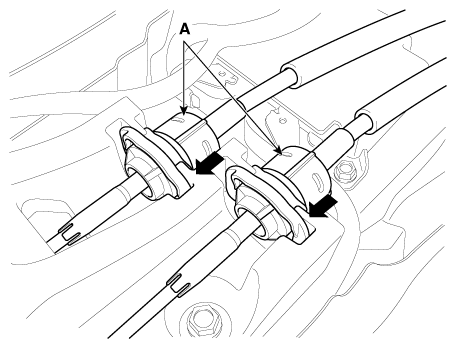

Fig 3: Removing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control cable socket (A).

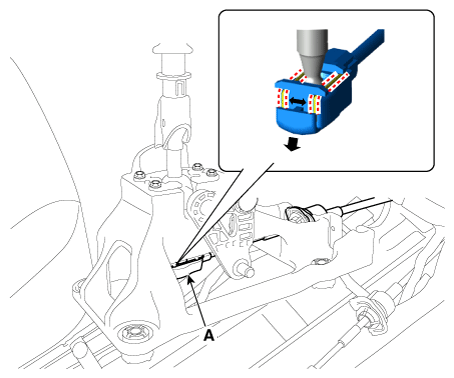

Fig 4: Removing Control Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable retainer (A) after loosening the nuts. Then, remove the shift cable by pulling it toward the vehicle interior.

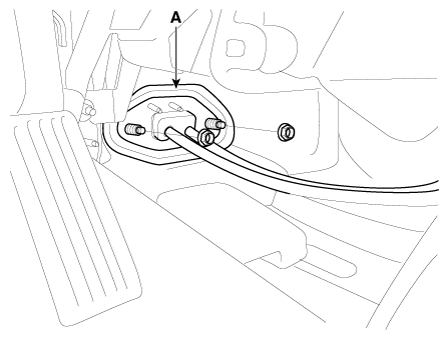

Fig 5: Locating Shift Cable Retainer

Courtesy of KIA MOTORS AMERICA, INC.
