Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Install the control shaft complete after setting the neutral state.
    • Apply the sealant to the contact surface of transaxle and control shaft.

      Specified sealant  : Anaerobic adhesive for flange

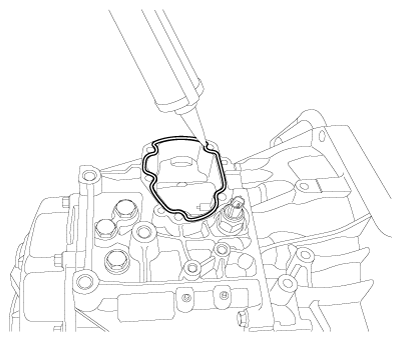

    Fig 1: Applying Sealant To Contact Surface Of Transaxle And Control Shaft
    G12162271Courtesy of KIA MOTORS AMERICA, INC.
