Repair Procedures: Removal

Shift the gear to "neutral".
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the control cable from the control shaft lever pin after removing pins (A) and washer (B).

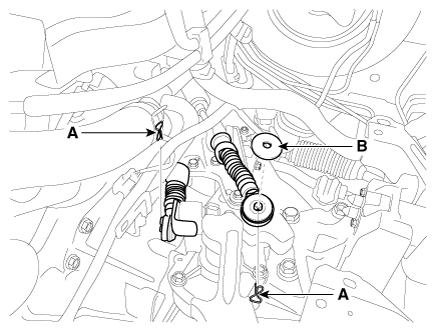

Fig 1: Locating Pins And Washer
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control shaft complete (A) after loosening the bolts.
Tightening torque:

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)

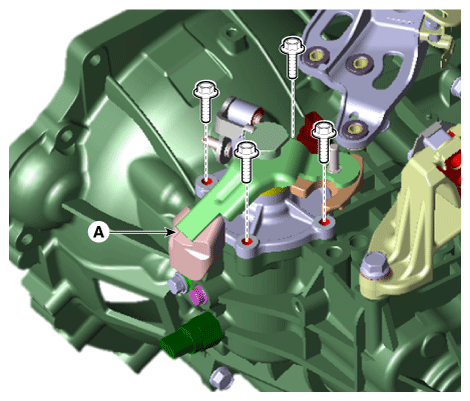

Fig 2: Locating Control Shaft Complete With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
