Repair Procedures: Removal

Remove the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")

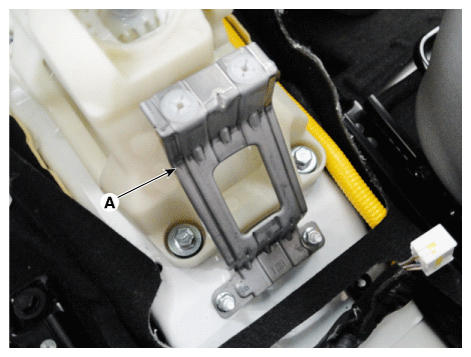

Remove the cover (A).

Fig 1: Locating Cover
Courtesy of KIA MOTORS AMERICA, INC.

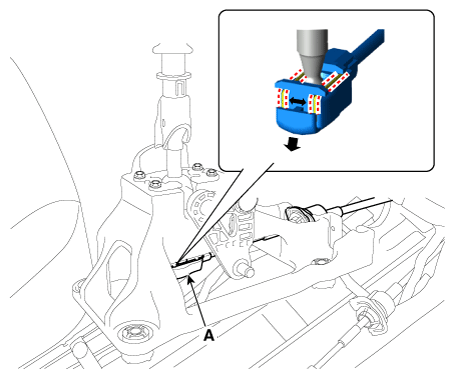

Remove the select cable (B) by removing the snap pin (A).

Fig 2: Locating Select Cable And Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable (A).

Fig 3: Locating Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

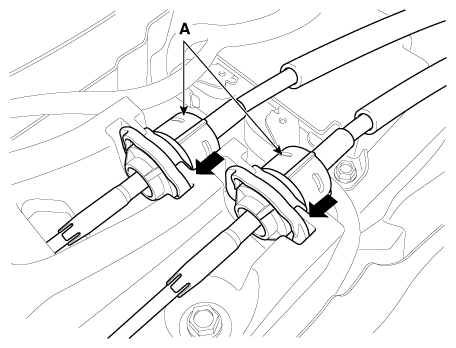

Remove the control cable socket (A).

Fig 4: Removing Control Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.

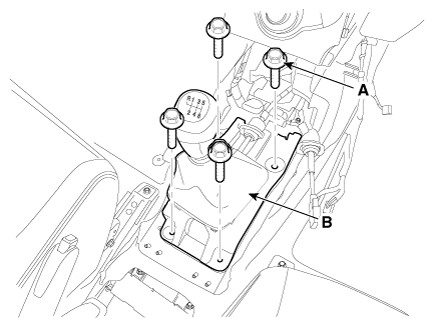

Remove the shift lever assembly (B) by removing the bolts (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Fig 5: Locating Shift Lever Assembly And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

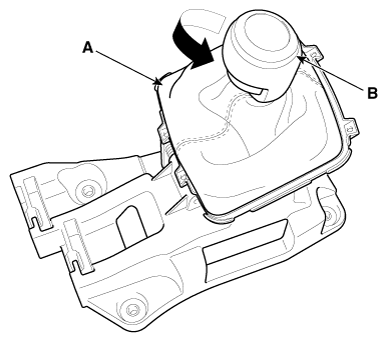

Remove the knob (B) and boots (A) by rotating it counter-clockwise.

Fig 6: Removing Knob And Boots
Courtesy of KIA MOTORS AMERICA, INC.

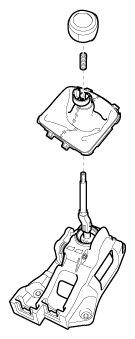

Fig 7: Knob And Boots
Courtesy of KIA MOTORS AMERICA, INC.
