Accelerator Position Sensor (APS): Specifications: Specification

Accelerator Position Output Voltage (V) [Vref = 5V]
APS1 APS2
C. T 0.7 - 0.8 0.29 - 0.46
W.O. T 3.85 - 4.35 1.93 - 2.18

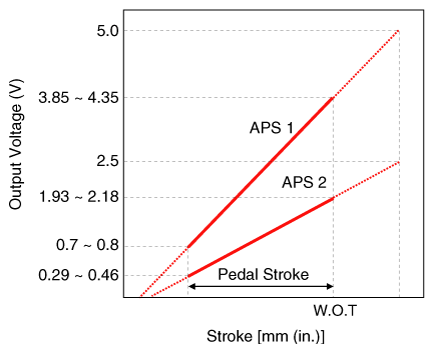

Fig 1: Accelerator Position Sensor Output Voltage Graph
G12165619Courtesy of KIA MOTORS AMERICA, INC.
