Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery terminal.
Remove the battery. (Refer to Engine Electrical System - "BATTERY ")
Disconnect the ECM Connector (A).
Remove the mounting bolts (B) and then remove the ECM (C).
ECM bracket mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

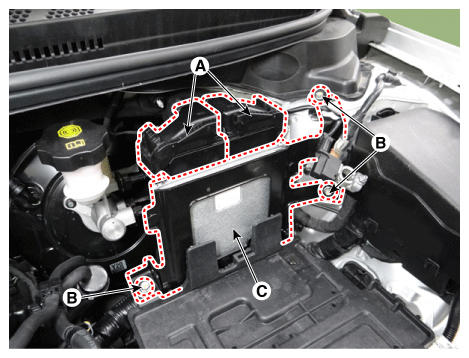

Fig 1: Removing ECM Bracket Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ECM after loosening the mounting nuts (A) and screw (B).

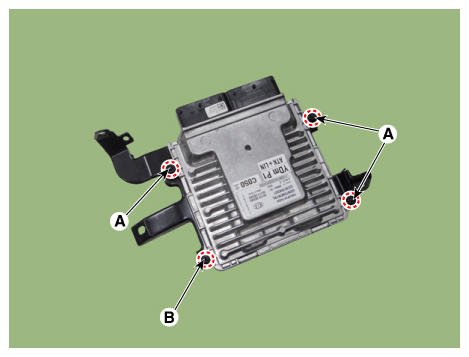

Fig 2: Removing ECM Mounting Nuts And Screw

G12165571

Courtesy of KIA MOTORS AMERICA, INC.
