Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  3. Remove the bolt and disconnect the horn connector (A), then remove the horn (B).

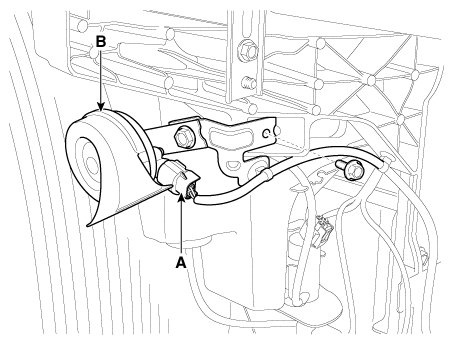

Fig 1: Horn & Connector
G12164565Courtesy of KIA MOTORS AMERICA, INC.
