Repair Procedures: Removal
WARNING:
In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Release the residual pressure in fuel line (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
- Remove the delivery pipe & injector assembly (Refer to "DELIVERY PIPE ").

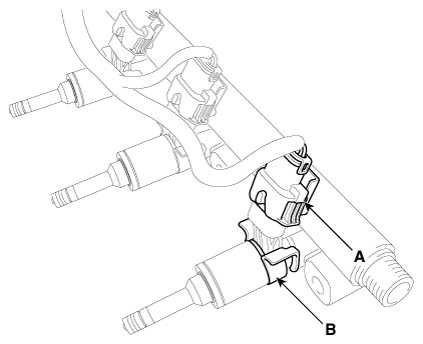

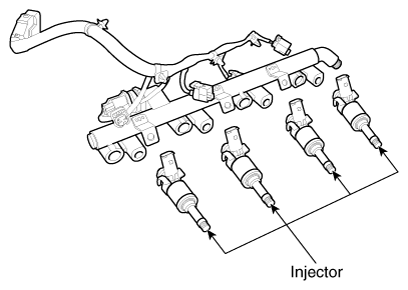

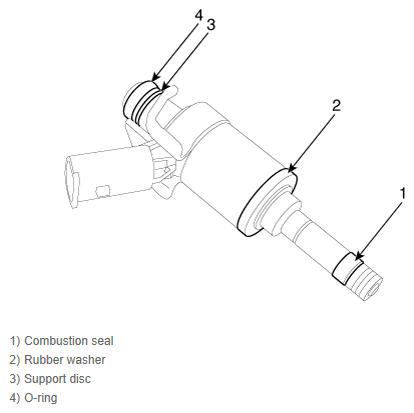

- Remove the connector (A) and the fixing clip (B), and then separate the injector from the delivery pipe.
