Repair Procedures: Replacement

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
Disconnect the front seat belt buckle connector wiring (A).

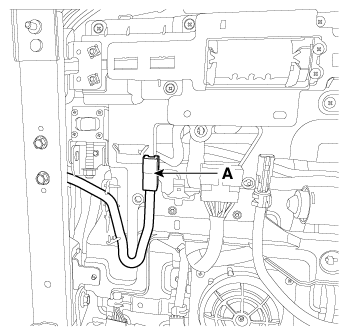

Fig 1: Locating Front Seat Belt Buckle Connector Wiring
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting bolt, then remove the front seat belt buckle (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

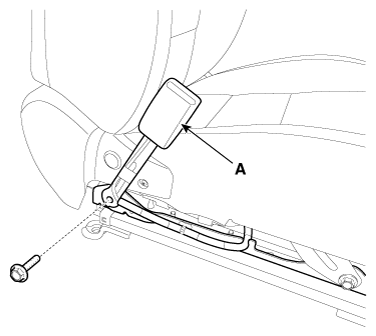

Fig 2: Locating Front Seat Belt Buckle With Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
