Repair Procedures: Removal

Shift the gear to "N".
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

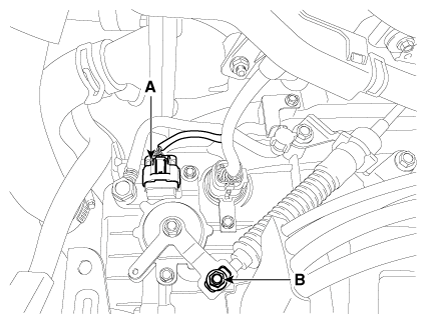

Disconnect the inhibitor switch connector (A) and loosen the shift cable mounting nut (B).

Fig 1: Disconnecting Inhibitor Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

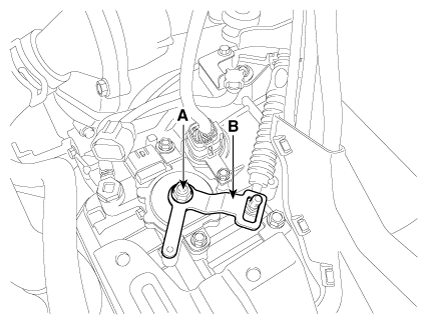

Remove the manual control lever (B) and the washer after removing a nut (A).

Fig 2: Removing Manual Control Lever And Washer
Courtesy of KIA MOTORS AMERICA, INC.

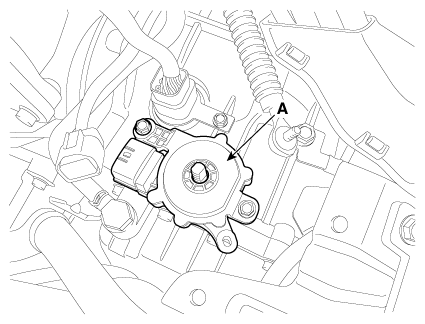

Remove the inhibitor switch (A) after loosening the bolts.

Fig 3: Removing Inhibitor Switch Bolts
Courtesy of KIA MOTORS AMERICA, INC.
