Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
Disconnect the accelerator position sensor connector (A).

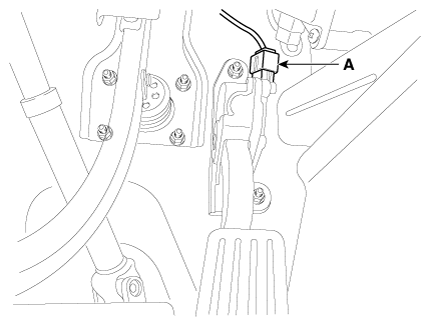

Fig 1: Accelerator Position Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the mounting bolt (B), the nuts (C) and then remove the accelerator pedal module.

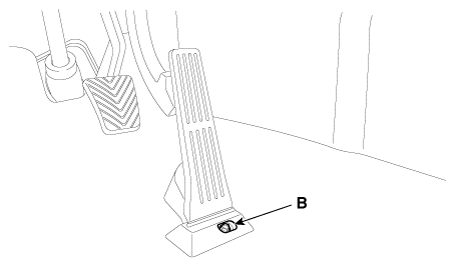

Fig 2: Accelerator Pedal Module Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

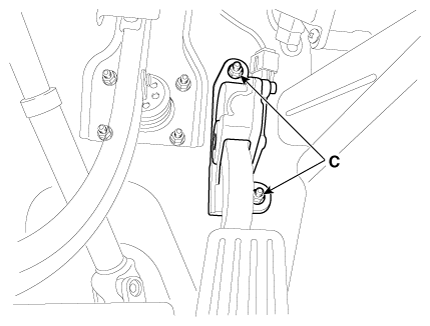

Fig 3: Accelerator Pedal Module Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
