Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duct (A).

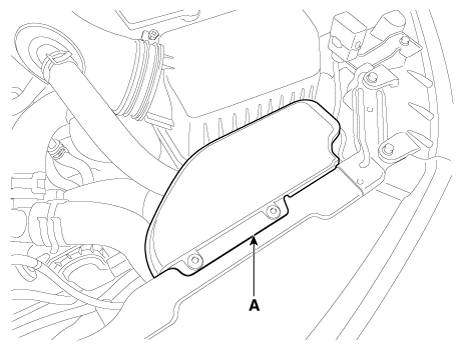

    Fig 1: Air Duct
    G12161357Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the boost pressure sensor connector (A).
  4. Remove the sensor by loosening the mounting bolts (B).

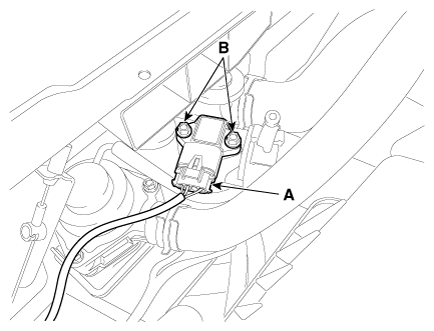

Fig 2: Boost Pressure Sensor Connector And Mounting Bolts
G12161358Courtesy of KIA MOTORS AMERICA, INC.
