Circuit Diagram

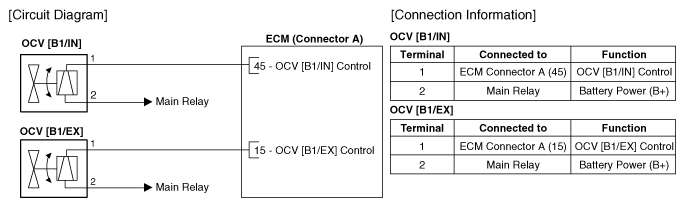

Fig 1: Continuous Variable Valve Timing System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
