Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the ETC module connector (A).

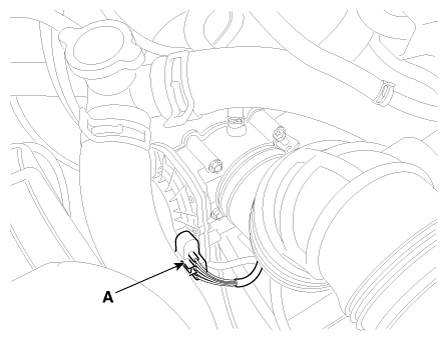

    Fig 1: ETC Module Connector
    G12161334Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the water hoses (A).

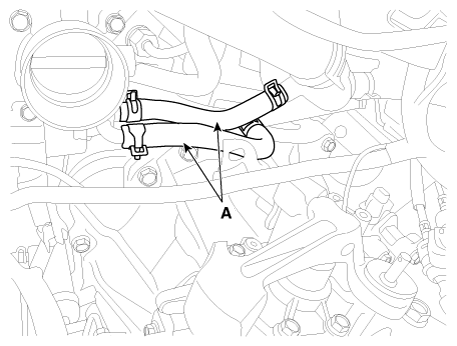

    Fig 2: Water Hoses
    G12161335Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the installation bolts, and then remove the ETC module (A) from the engine.

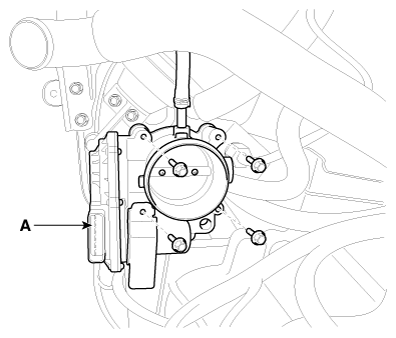

Fig 3: ETC Module With Installation Bolts
G12161336Courtesy of KIA MOTORS AMERICA, INC.
