Components And Components Location: Component

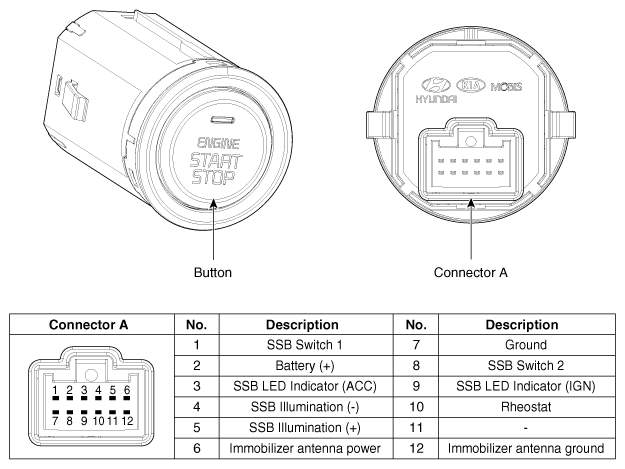

Fig 1: Locating Start/Stop Button Connector

G12334536

Courtesy of KIA MOTORS AMERICA, INC.
