Components And Components Location: Components

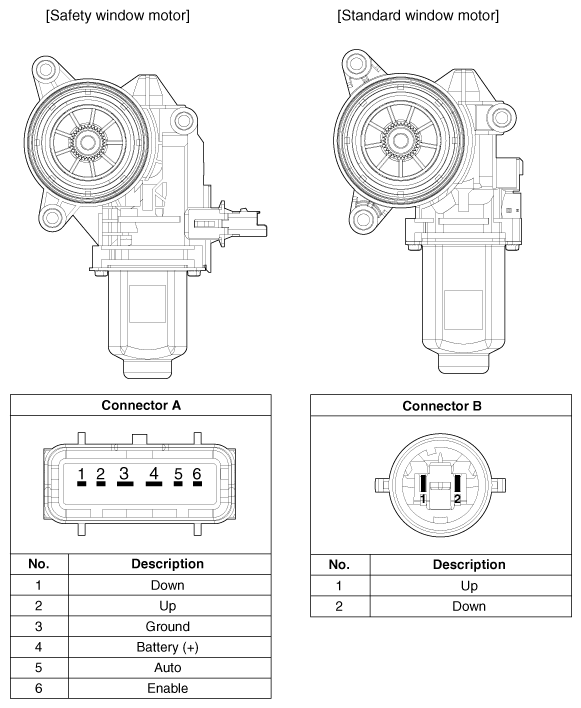

Fig 1: Locating Power Window Motor Connector Terminal
G12334974Courtesy of KIA MOTORS AMERICA, INC.
