Connector Pin Information

[Connector A]

(Driver Safety Power Switch/Auto Down Power Switch)

No. Description
1 Front Right Power Window (Up)
2 -
3 Front Right Power Window (Down)
4 Door Lock Switch
5 Left Window Lock Switch
6 Door Unlock Switch
7 Front Left Power Window (Up)
8 Ground
9 Front Left Power Window (Down)
10 Rear Right Power Window (Up)
11 Rear Right Power Window (Down)
12 Battery (+) RH
13 Tail lamp
14 Right Window Lock Switch
15 Rear Left Power Window (Up)
16 Rear Left Power Window (Down)
17 Front Left Power Window (Auto)
18 Battery (+) LH

(Front Safety Power Switch)

No. Description
1 Front Right Power Window (Up)
2 Front Right Power Window (Auto)
3 Front Right Power Window (Auto)
4 Door Lock Switch
5 Left Window Lock Switch
6 Door Unlock Switch
7 Front Left Power Window (Up)
8 Ground
9 Front Left Power Window (Down)
10 Rear Right Power Window (Up)
11 Rear Right Power Window (Down)
12 Battery (+) RH
13 Tail Lamp
14 Right Window Lock Switch
15 Rear Left Power Window (Up)
16 Rear Left Power Window (Down)
17 Front Left Power Window (Auto)
18 Battery (+) LH

[Connector B]

(Auto Folding Mirror Switch/Non-Folding Mirror Switch)

No. Description
1 -
2 -
3 -
4 -
5 Ground
6 -
7 Mirror Folding Switch
8 Mirror Unfolding Switch
9 -
10 Left Mirror common
11 Left Mirror horizontal
12 Mirror vertical
13 Right Mirror horizontal
14 Right Mirror common
15 -
16 ACC

[Driver Power Window Module (IMS Type)]

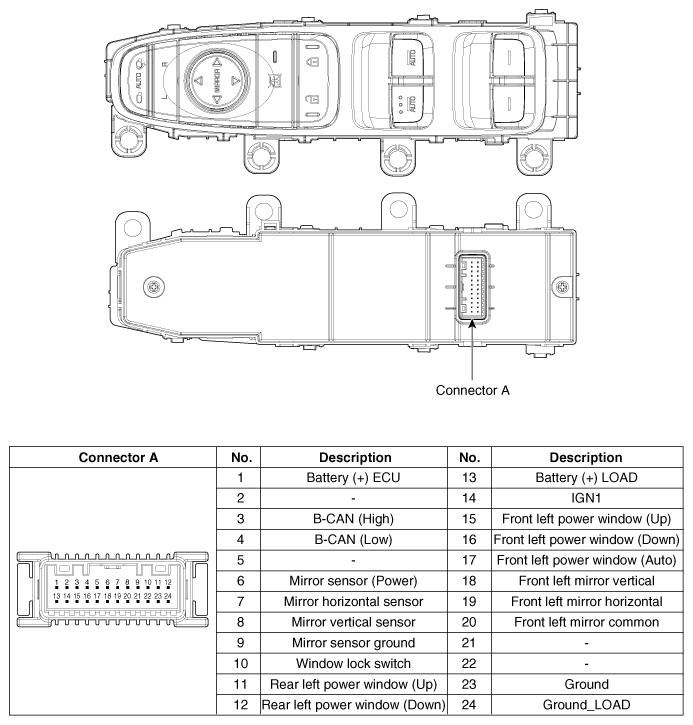

Fig 1: Locating Driver Power Window Switch (IMS Type) Connector
G12334982Courtesy of KIA MOTORS AMERICA, INC.


[A Type]

(Manual Type)

No. Description
1 Power Window (Up)
2 Window up signal (from main)
3 Ground
4 Power Window (Down)
5 -
6 Battery (+)
7 Window down signal (from main)
8 Tail Lamp

[B Type]

(Manual + Door Lock Type)

No. Description
1 Power Window (Up)
2 Tail Lamp
3 Door Lock Switch
4 Ground
5 Door Unlock Switch
6 Power Window (Down)
7 -
8 Window up signal (from main)
9 -
10 Ground
11 Window down signal (from main)
12 Battery (+)

(Safety Type)

No. Description
1 Tail Lamp
2 -
3 Ground
4 -
5 -
6 -
7 Power Window (Down)
8 -
9 Power Window (Up)
10 -
11 Power Window (Auto)
12 -

(Safety + Door Lock Type)

No. Description
1 Tail Lamp
2 -
3 Ground
4 Door Lock Switch
5 Door Unlock Switch
6 -
7 Power Window (Down)
8 -
9 Power Window (Up)
10 -
11 Power Window (Auto)
12 -

[Assist Power Window Module (IMS Type)]

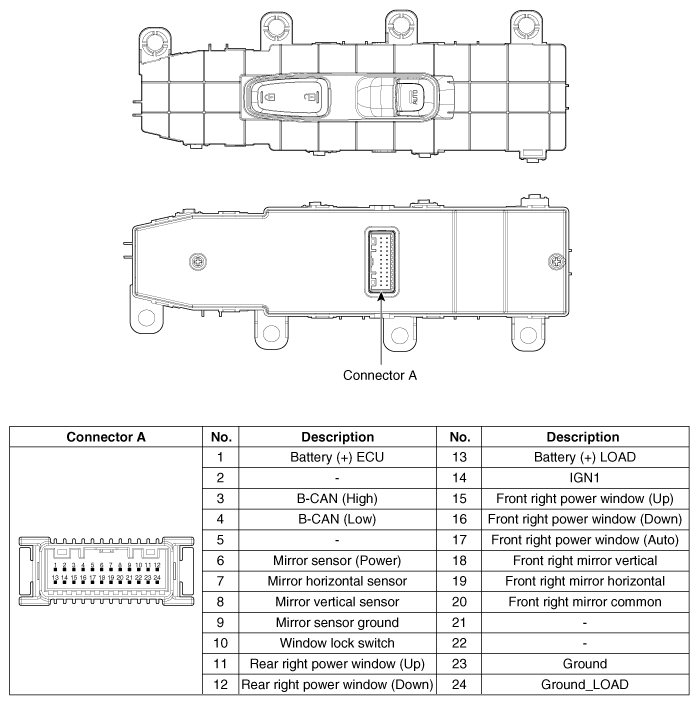

Fig 1: Locating Assist Power Window Switch (IMS Type) Connector
G12334984Courtesy of KIA MOTORS AMERICA, INC.


[A Type]

(Manual Type)

No. Description
1 Tail Lamp
2 Window down signal (from main)
3 -
4 -
5 -
6 Power Window (Down)
7 Ground
8 Window up signal (from main)
9 -
10 Battery (+)
11 -
12 Power Window (Up)

(Manual + Seat Warmer Type)

No. Description
1 Power Window (Up)
2 Seat Heater Indicator (High)
3 Seat Heater Indicator (Low)
4 Tail Lamp
5 Battery (+)_Seat Warmer
6 Power Window (Down)
7 Window up signal (from main)
8 Ground
9 Ground
10 -
11 Window down signal (from main)
12 Battery (+)

(Safety + Non-Seat Warmer Type)

No. Description
1 Ground
2 -
3 -
4 -
5 -
6 Power Window Switch (Tail Lamp)
7 Window Lock Switch
8 Power Window (Up)
9 Power Window Switch (Up)
10 Power Window Switch (Down)-
11 Power Window (Down)
12 Battery (+)

(Safety + Seat Warmer Type)

No. Description
1 Ground
2 -
3 Seat Heater Indicator (Low)
4 Seat Heater Indicator (High)
5 Seat Heater Switch
6 Power Window Switch (Tail Lamp)
7 Window Lock Switch
8 Power Window (Up)
9 Power Window Switch (Up)
10 Power Window Switch (Down)
11 Power Window (Down)
12 Battery (+)
