Rear Power Window Switch

1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim.

   (Refer to Body - "REAR DOOR TRIM ")

3. Disconnect the power window switch connector from the door trim.

Fig 1: Rear Power Window Switch Connector

Courtesy of KIA MOTORS AMERICA, INC.

[Power Window Switch Inspection]

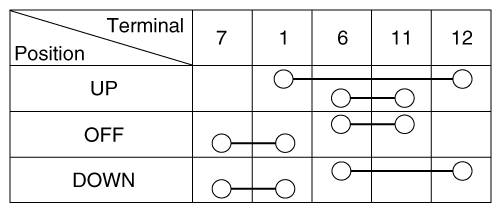

Fig 2: Power Window Switch Inspection Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

[Rear Seat Heater Switch Inspection]

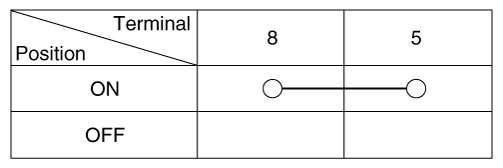

Fig 3: Rear Seat Heater Switch Inspection Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

[IMS Type]
