Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Disconnect the accelerator position sensor connector (A).

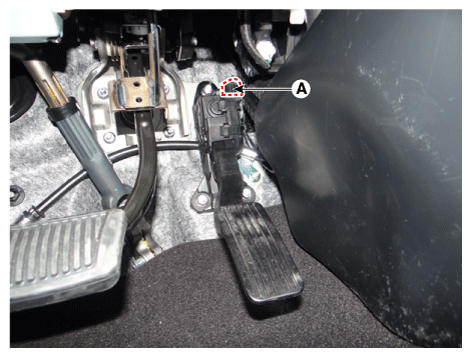

Fig 1: Disconnecting Accelerator Position Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the accelerator position sensor after loosening the mounting nuts (A).
Accelerator Pedal Sensor Mounting Bolt:

12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 10.6 lb.ft)

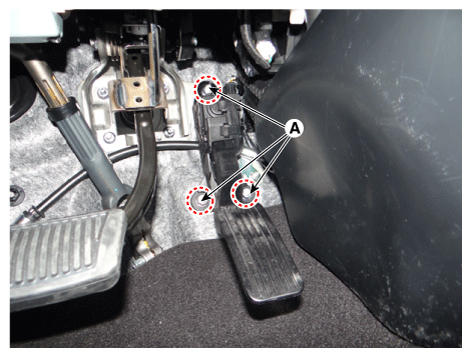

Fig 2: Removing Accelerator Position Sensor Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
