Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the filler-neck assembly.

    (Refer to Engine Control/Fuel System - "FILLER-NECK ASSEMBLY ")

  3. Remove the fuel tank air filter mounting bolts (A).

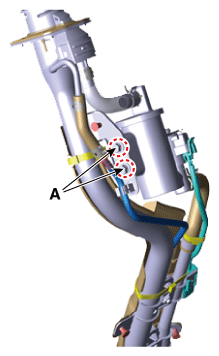

    Fig 1: Removing Fuel Tank Air Filter Mounting Bolts
    G12335889Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the ventilation hoses (A) and CCV connector (B).
  5. Remove the fuel tank air filter & CCV (C).

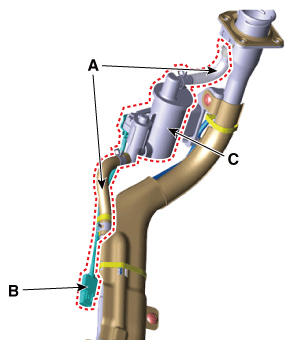

    Fig 2: Disconnecting Ventilation Hoses And CCV Connector
    G12335890Courtesy of KIA MOTORS AMERICA, INC.
  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.

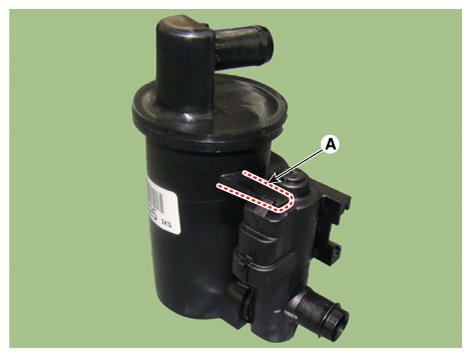

    Fig 3: Releasing Lever
    G12335891Courtesy of KIA MOTORS AMERICA, INC.

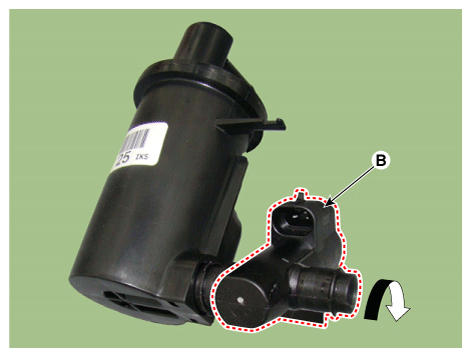

    Fig 4: Rotating Canister Close Valve
    G12335892Courtesy of KIA MOTORS AMERICA, INC.
