Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

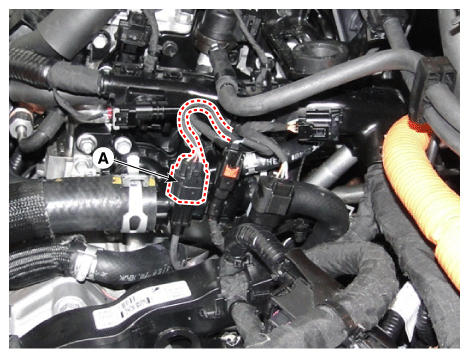

Disconnect the crankshaft position sensor connector (A).

Fig 1: Disconnecting Crankshaft Position Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

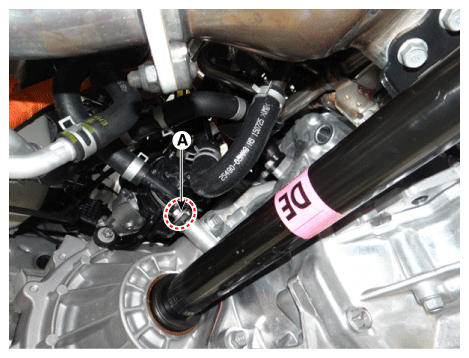

Remove the crankshaft position sensor after loosening the mounting bolt (A).
Crankshaft Position Sensor Mounting Bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
