Signal Waveform

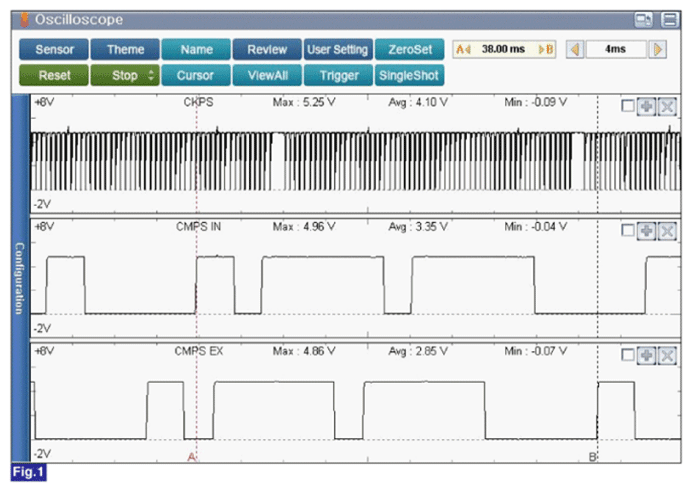

Fig 1: Screen Display - Crankshaft Position Sensor Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveforms at idle. The PCM controls the injection and ignition timing by using these signals.

Generally, the CKPS signal is used to detect the piston position whereas the CMPS signal is used to detect the top dead center of each cylinder.
