Auto Detection Reset Procedure

NOTE: After replacing the ETC module, the "ECM Auto Detection Reset" procedure must be performed.
  1. Switch "OFF" the ignition.
  2. Connect the KDS/GDS to Data Link Connector (DLC).
  3. Switch "ON" the ignition.
  4. Select "Vehicle, Model year, Engine, System".
  5. Select "Vehicle S/W Management".
  6. Select "ECM Auto Detection Reset".

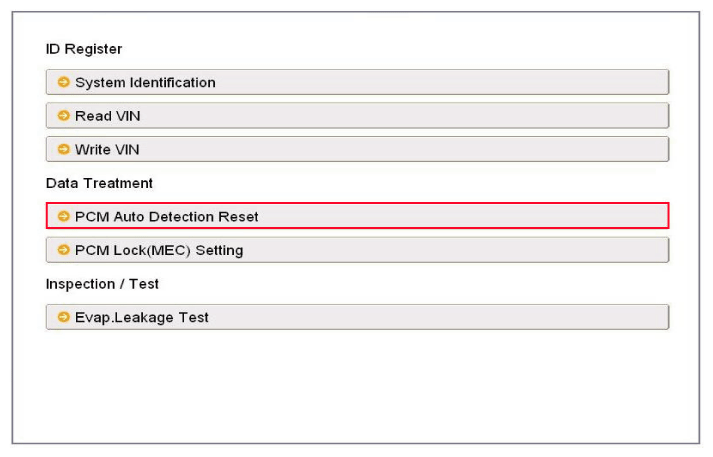

    Fig 1: Screen Display - PCM Auto Detection Reset
    G12335770Courtesy of KIA MOTORS AMERICA, INC.
