Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

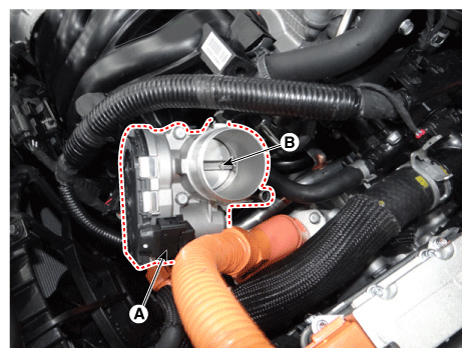

- Disconnect the ETC Module Connector (A).
- Remove the installation Bolts, and then remove the ETC Module (B) from the Engine.
Electronic Throttle Body Mounting Bolt:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.7 - 7.2 lb.ft)
