Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
EGR cooler pipe.
(Refer to Engine Mechanical System - "EGR COOLER ")
Remove the EEGR valve (B) after loosening the mounting bolts and nuts (A).

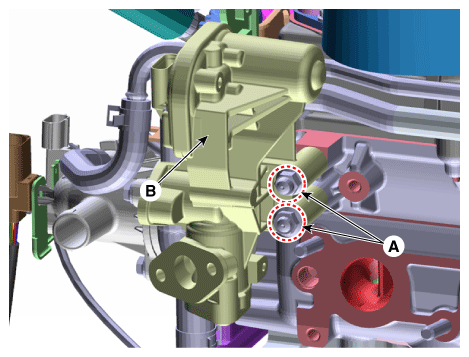

Fig 1: Removing EEGR Valve (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

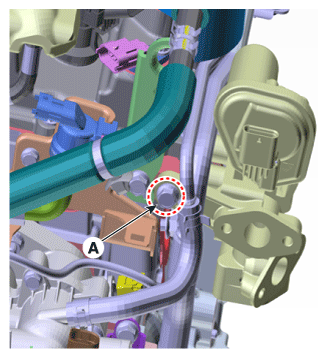

Fig 2: Removing EEGR Valve (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

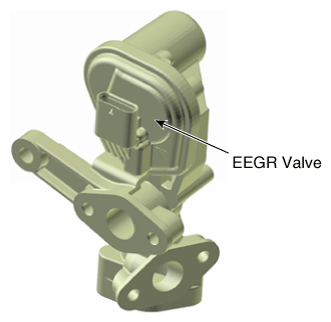

Fig 3: Removing EEGR Valve (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
