Engine Coolant Temperature Sensor (ECTS) [EGR Cooler Tube]
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

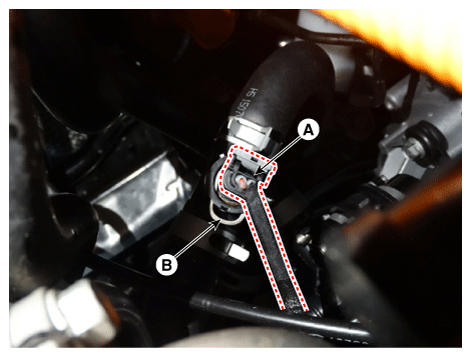

- Disconnect the Engine Coolant Temperature Sensor Connector (A).
- Remove the Spring Clip (B), and then pull the sensor from the water temperature control assembly.
Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Note that engine coolant may flow out from the water temperature control assembly when removing the sensor.
