ECTS [Water Temperature Control Assembly]

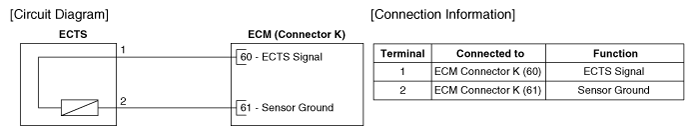

Fig 1: Engine Coolant Temperature Sensor System Circuit
G12335788Courtesy of KIA MOTORS AMERICA, INC.
