Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the rear seat.
(Refer to Body - "REAR SEAT ASSEMBLY ")
Remove the fuel pump service cover (A).

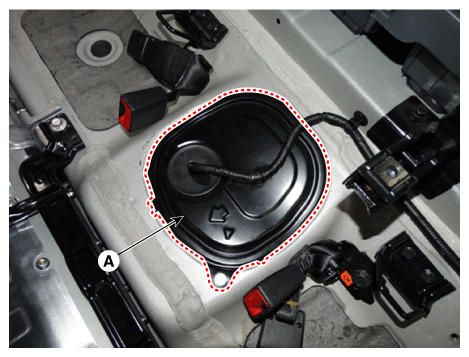

Fig 1: Removing Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When reinstalling a protective cover for a fuel pump, remove the existing butyl tape and apply a new one.
- Before assembling the protective cover, ensure that the temperature of the butyl is about 30°C using a hair dryer or a heat gun.

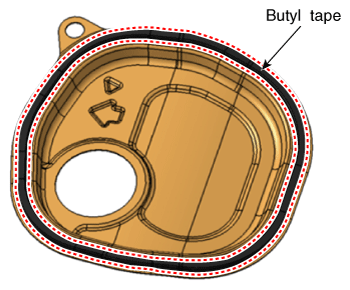

Fig 2: Protecting Fuel Pump Cover With Butyl Tape
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When installing the protective cover for the fuel pump, pay attention to the installation direction of the grommet and the protective cover.
  - The arrow (A) should be in the forward direction of the car.
  - Align the bulging part of the vehicle body (B) with the hole of the protective cover.
  - Align the bulging part of the grommet (C) with the bulging part of the protective cover.

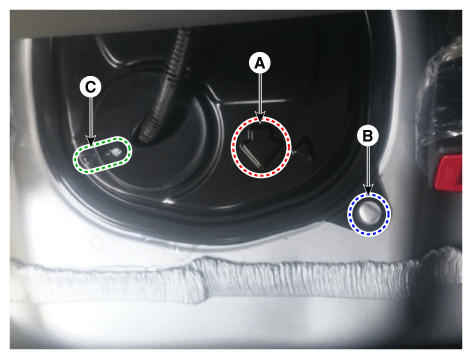

Fig 3: Aligning Bulging Part Of Vehicle Body With Protective Cover Hole
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel tank pressure sensor connector (A).

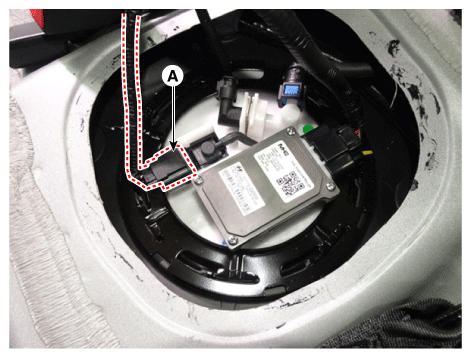

Fig 4: Disconnecting Fuel Tank Pressure Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.

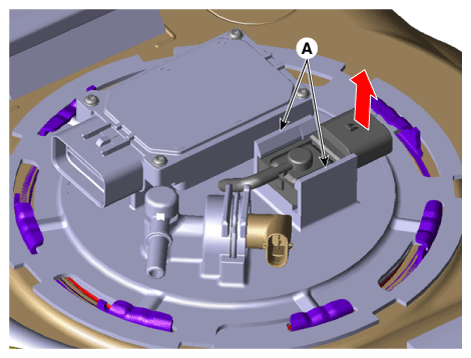

Fig 5: Removing Fuel Tank Pressure Sensor
Courtesy of KIA MOTORS AMERICA, INC.
