Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the intake manifold. (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

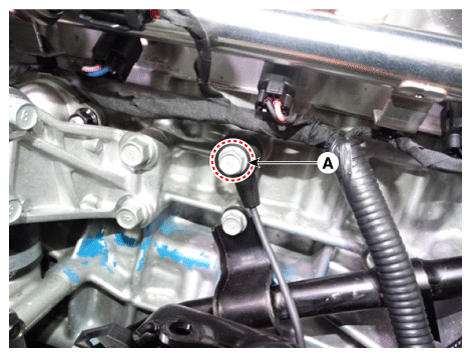

- Remove the installation bolt (A), and then remove the sensor from the cylinder block.
Knock Sensor Mounting Bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
