Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")
- Remove the injector foam.

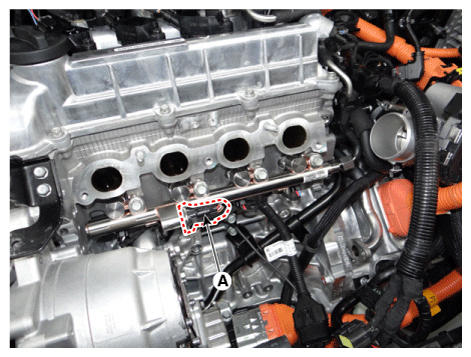

- Disconnect the rail pressure sensor connector, and then remove the sensor (A) from the delivery pipe.
Rail Pressure Sensor:
30.0 - 34.3 N.m (3.0 - 3.5 kgf.m, 22.1 - 25.3 lb.ft)
