Circuit Diagram: Notes

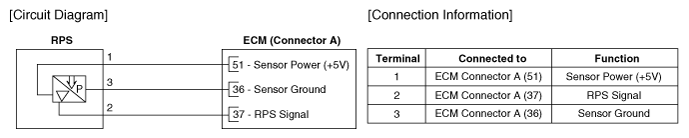

Fig 1: Rail Pressure Sensor System Circuit

G12335821

Courtesy of KIA MOTORS AMERICA, INC.
