Rail Pressure Sensor (RPS): Specifications: Specification

RAIL PRESSURE SENSOR (RPS) VOLTAGE SPECIFICATION

Pressure		Output Voltage (V) [V-ref = 5V]
bar	[MPa (kgf/cm2 , psi)]
0	0 (0, 0)	0.5
140	14 (142, 2031)	2.5
280	28 (286, 4061)	4.5

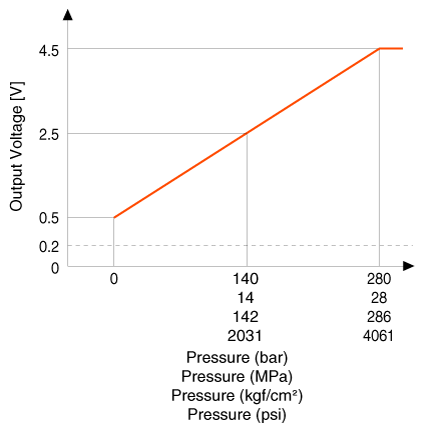

Fig 1: Rail Pressure Sensor Output Voltage Graph

Courtesy of KIA MOTORS AMERICA, INC.
