Repair Procedures: Removal

WARNING: In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System -"RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Switch "OFF" the ignition and disconnect the negative (-) terminal of the auxiliary 12V battery.
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")
Remove the high pressure pipe flange nuts (A) by using the special service tool [SST No. 09314 - 3Q100 or 09314 - 27130].
Remove the high pressure fuel pipe (C) after loosening the function block mounting bolt (B).
High Pressure Fuel Pipe Function Block Mounting Bolt:

9.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

High Pressure Fuel Pipe Flange Nut:

32.4 - 35.3 N.m (3.3 - 3.6 kgf.m, 23.9 - 26.0 lb.ft)

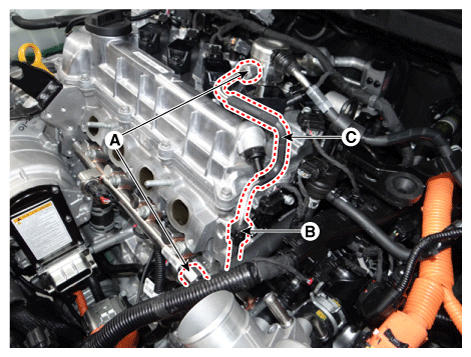

Fig 1: Removing High Pressure Pipe Flange Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the delivery pipe & injector assembly mounting bolts (A).
Delivery pipe & injector assembly mounting bolt:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

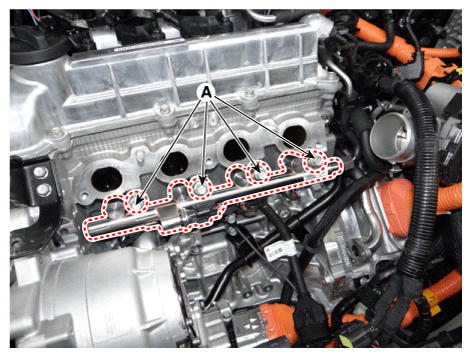

Fig 2: Removing Delivery Pipe & Injector Assembly Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the delivery pipe & injector assembly (A) from the engine.

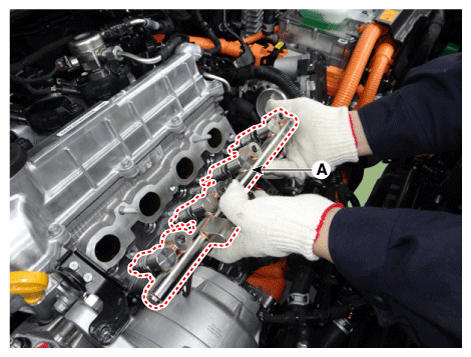

Fig 3: Removing Delivery Pipe & Injector Assembly From Engine (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

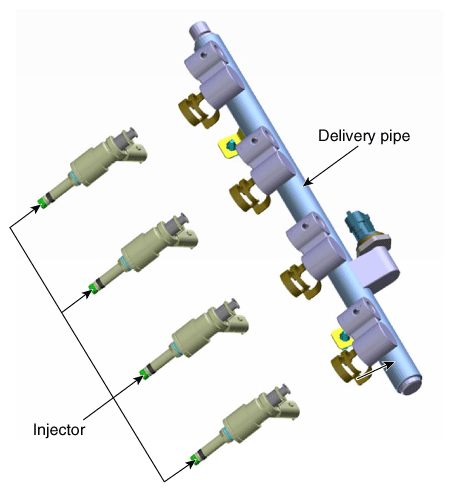

Fig 4: Removing Delivery Pipe & Injector Assembly From Engine (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
