Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

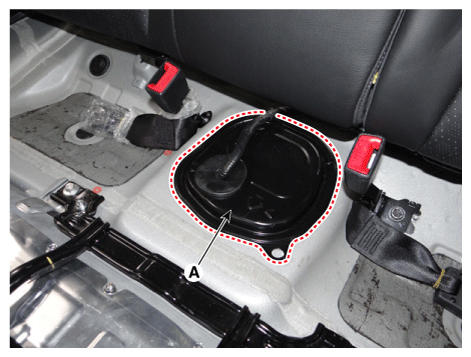

Fuel pump service cover (A).

Fig 1: Removing Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pump control module connector (A).
Disconnect the fuel pressure sensor connector (B).
Disconnect the fuel feed tube quick-connector.(C).

Fig 2: Removing Fuel Pump Control Module Connector
Courtesy of KIA MOTORS AMERICA, INC.

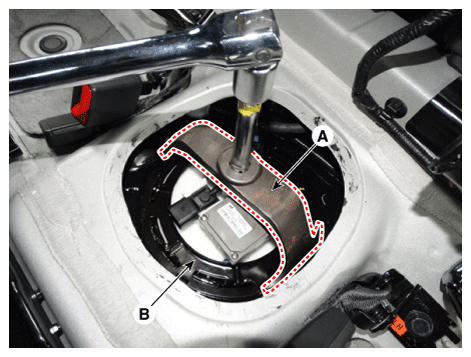

Remove the fuel pump plate cover (B) by using the special service tool (A) [SST NO.:09310-B8100].

Fig 3: Removing Fuel Pump Plate Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pump (A).

Fig 4: Removing Fuel Pump

Courtesy of KIA MOTORS AMERICA, INC.
