Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

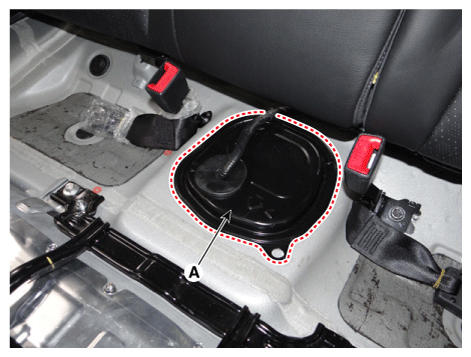

Fuel pump service cover (A).

Fig 1: Removing Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.

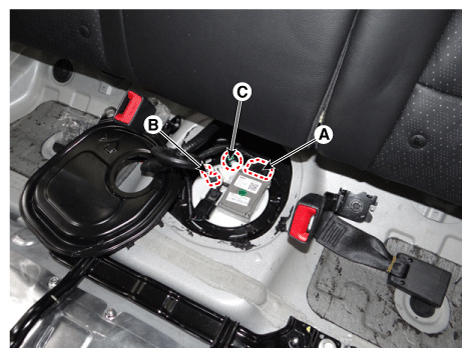

Remove the fuel pump control module connector (A).
Disconnect the fuel pressure sensor connector (B).
Disconnect the fuel feed tube quick-connector (C).

Fig 2: Removing Fuel Pump Control Module Connector
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the center muffler.
(Refer to Engine Mechanical System - "MUFFLER ")

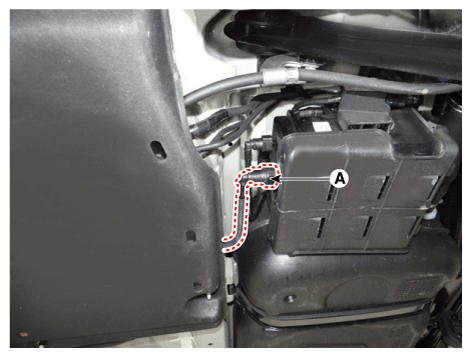

Disconnect the vapor tube quick-connector (A).

Fig 3: Disconnecting Vapor Tube Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.

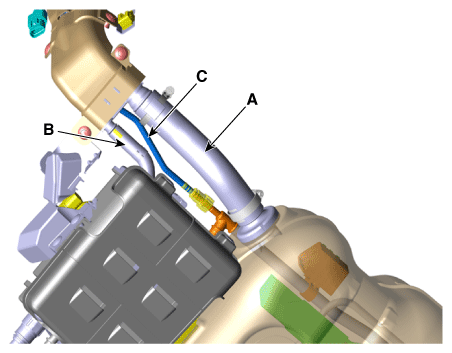

Disconnect the fuel filler hose (A), ventilation hose (B) and leveling tube quick-connector (C).

Fig 4: Disconnecting Fuel Filler Hose, Ventilation Hose And Leveling Tube Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.

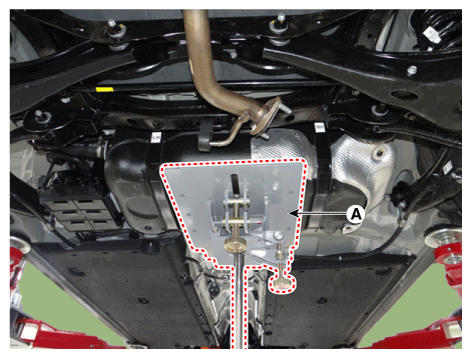

Support the tank on a jack (A).

Fig 5: Supporting Tank On Jack
Courtesy of KIA MOTORS AMERICA, INC.

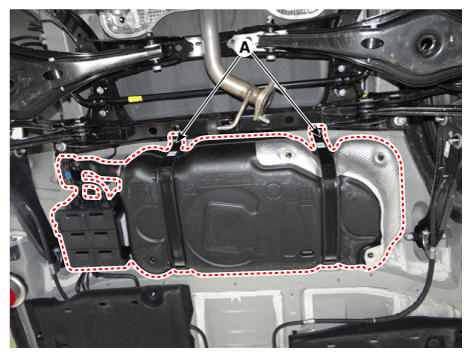

Remove the fuel tank band mounting nuts (A).
Fuel Tank Band Mounting Nut:

39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Fig 6: Removing Fuel Tank Band Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

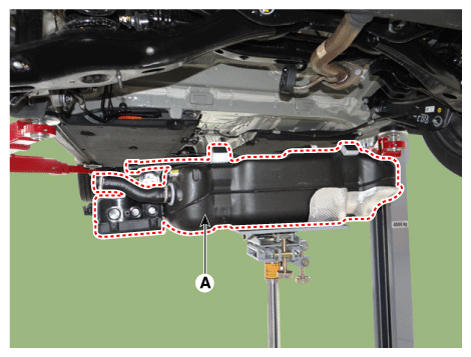

Remove the fuel tank & canister assembly (A).

Fig 7: Removing Fuel Tank & Canister Assembly
Courtesy of KIA MOTORS AMERICA, INC.

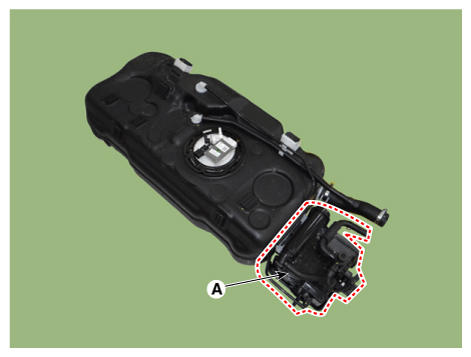

Remove the canister assembly (A).
(Refer to Emission Control System - "CANISTER ")

Fig 8: Removing Canister Assembly
Courtesy of KIA MOTORS AMERICA, INC.
