Repair Procedures: Removal

1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
2. Remove the engine cover.
3. Disconnect the ignition coil connector (A).

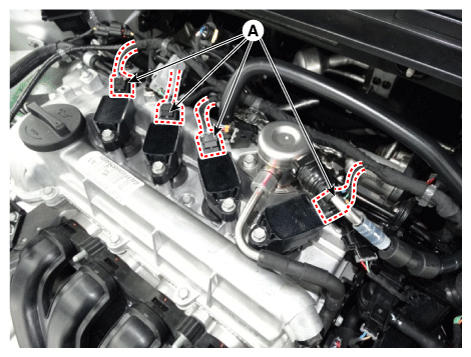

   Fig 1: Disconnecting Ignition Coil Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Remove the ignition coil (A) after loosening the mounting bolt.

Ignition Coil Mounting Bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

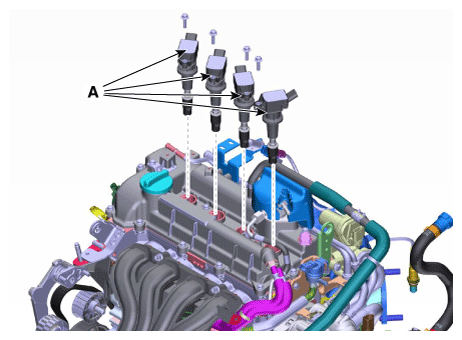

Fig 2: Removing Ignition Coil Mounting Bolt

Courtesy of KIA MOTORS AMERICA, INC.

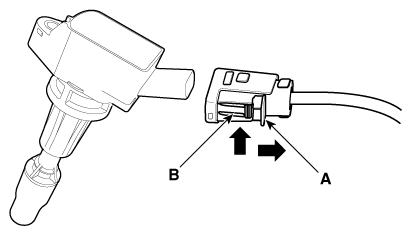

Fig 3: Pulling Lock Pin

Courtesy of KIA MOTORS AMERICA, INC.
