Assist Power Window Switch

1. Disconnect the negative (-) battery terminal.
2. Remove the assist front door trim.

   (Refer to Body - "FRONT DOOR TRIM ")

3. Disconnect the power window switch connector from the door trim.

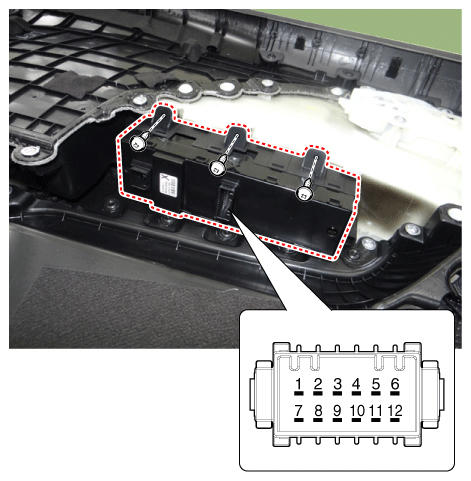

   Fig 1: Assist Power Window Switch Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Check for continuity between the terminals in each switch position as displayed below.

[Power Window Switch Inspection]

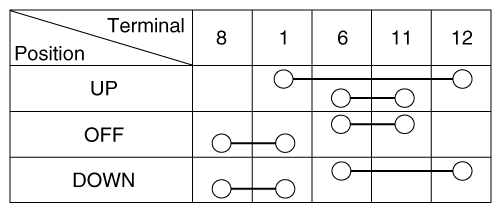

Fig 2: Power Window Switch Inspection Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

[Power Door Lock Switch Inspection]

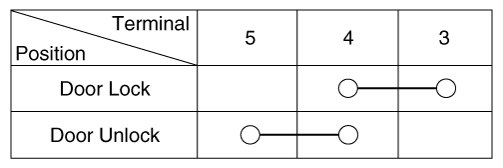

Fig 3: Power Door Lock Switch Inspection Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
