Driver Power Window Switch

[Driver Power Window Switch (Non-IMS Type)]

(Auto Down Power Switch)

Fig 1: Driver Power Window Switch (Non-IMS Type) System Circuit - Auto Down Power Switch
G12334986Courtesy of KIA MOTORS AMERICA, INC.

(Driver Safety Power Switch)

Fig 2: Driver Power Window Switch (Non-IMS Type) System Circuit - Driver Safety Power Switch
G12334987Courtesy of KIA MOTORS AMERICA, INC.

(Front Safety Power Switch)

Fig 3: Driver Power Window Switch (Non-IMS Type) System Circuit - Front Safety Power Switch
G12334988Courtesy of KIA MOTORS AMERICA, INC.

(Non-Folding Mirror Switch)

Fig 4: Driver Power Window Switch (Non-IMS Type) System Circuit - Non-Folding Mirror Switch
G12334989Courtesy of KIA MOTORS AMERICA, INC.

(Auto Folding Mirror Switch)

Fig 5: Driver Power Window Switch (Non-IMS Type) System Circuit - Auto Folding Mirror Switch
G12334990Courtesy of KIA MOTORS AMERICA, INC.

[Driver Power Window Module (IMS Type)]

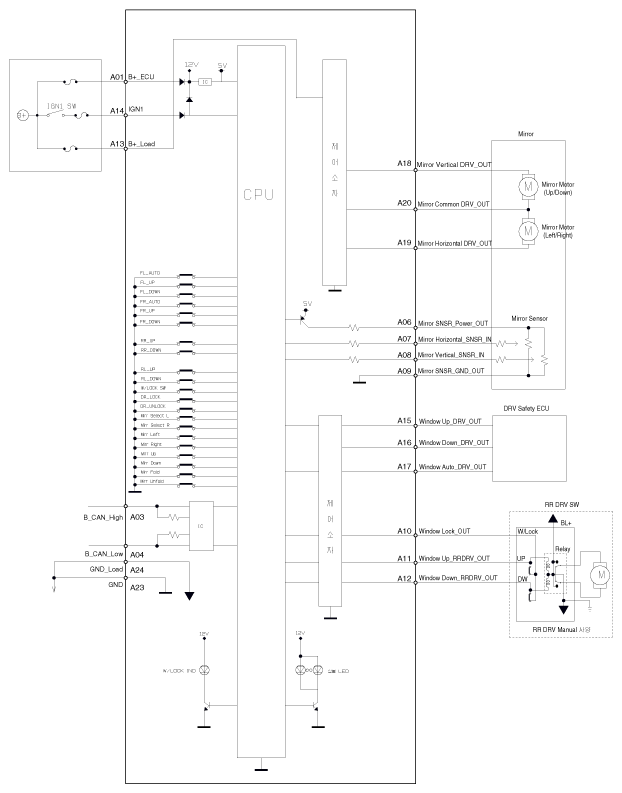

Fig 6: Driver Power Window Module (IMS Type) System Circuit
G12334991Courtesy of KIA MOTORS AMERICA, INC.
