[Electrical Inspection]

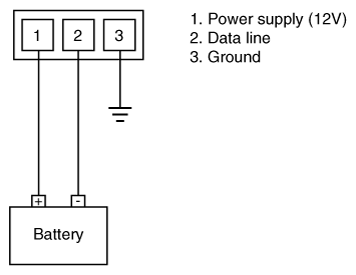

- Connect power supply line and ground line to the NVLD terminals below.
- Measure current between the NVLD terminal 1 and battery (+) terminal during NVLD switch open.
- Measure current between the NVLD terminal 1 and battery (+) terminal during NVLD switch closed.
- Measure current between the NVLD terminal 2 and battery (+) terminal during NVLD switch open.
- Check the current is within the specification.
NOTE:
NVLD switch is normal open.
When applying more than 6 mbar (Positive) pressure to canister port, switch is closed.
