Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

  3. Disconnect the NVLD connector (A) and ventilation hoses (B).
  4. Remove the NVLD (C) after loosening the mounting screws (D).

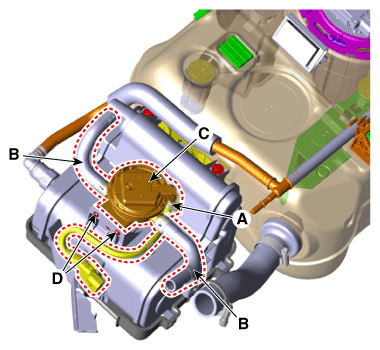

Fig 1: Disconnecting NVLD Connector And Ventilation Hoses
G12335856Courtesy of KIA MOTORS AMERICA, INC.
