Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery system - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

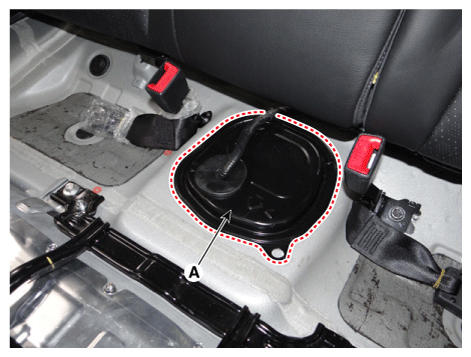

Remove the fuel pump service cover (A).

Fig 1: Removing Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.

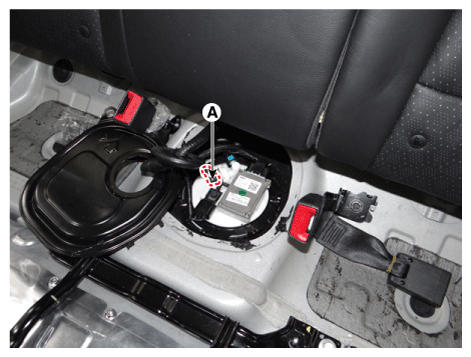

Disconnect the fuel pressure sensor connector (A).

Fig 2: Disconnecting Fuel Pressure Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

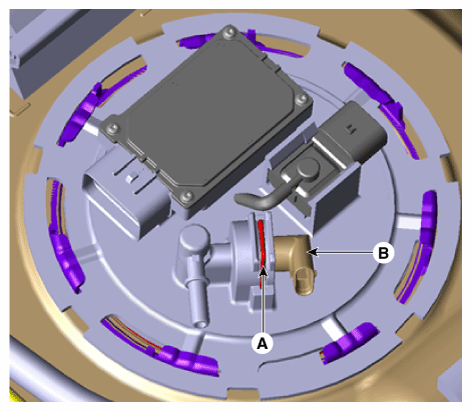

Remove the fuel pressure sensor fixing pin (A).
Remove the fuel pressure sensor (B) from the fuel pump.

Fig 3: Removing Fuel Pressure Sensor Fixing Pin

Courtesy of KIA MOTORS AMERICA, INC.
