Circuit Diagram

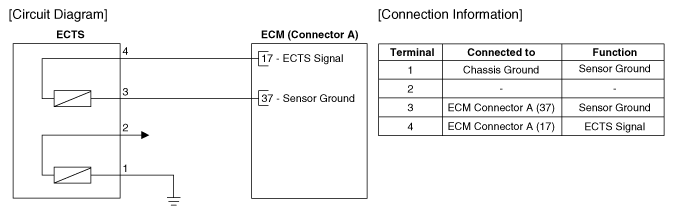

Fig 1: Engine Coolant Temperature Sensor Circuit
G12146854Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: Engine Coolant Temperature Sensor Connector Terminals
G12146855Courtesy of KIA MOTORS AMERICA, INC.
