Circuit Diagram

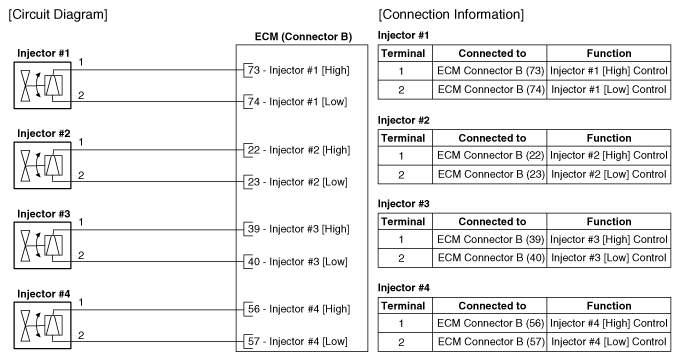

Fig 1: Injector Circuit
G12146903Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: Injector Connector Terminals
G12146904Courtesy of KIA MOTORS AMERICA, INC.
